Preface

Usually, when performing virus analysis, a well-configured virus analysis environment is required. FireEye has also released a pre-configured virtual machine, but the installation process of the virtual machine is very slow, so it is better for us to configure it ourselves. Below, we will elaborate on the configuration of the virtual machine and the basic principles of virus analysis, which is the first step in virus analysis.

Virtual machine environment configuration

Taking VMware as an example, explain the relevant operations of the virtual machine

System preparation

Download and install the operating system as follows in the virtual machine, the process of installing the system in the virtual machine is the same as the normal installation, but it is necessary to ensure that the disk'sSize is sufficient, to ensure that there is no disk shortage when taking snapshots later:

1. Windows 7 system SP1 and above
2. Windows 10 system

Basic settings

1. Do not connect the USB flash drive to the virtual machine, or set the virtual machine to prevent automatic connection of the USB flash drive;

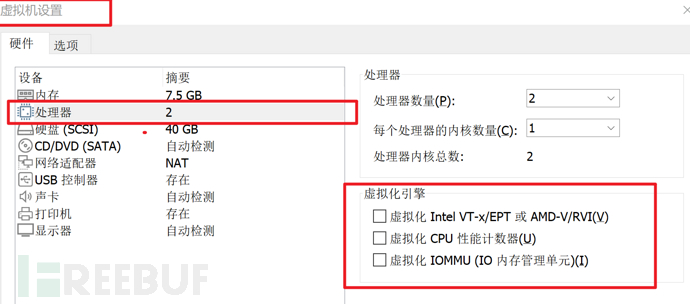

2. Select Virtualization Intel VT-x/EPT or AMD-V/RVI (Settings - Processor)

3. File options -> Show file extensions and hidden files; View -> Details: it is to directly see the file suffix and other information, in order to prevent file forgery and deception.

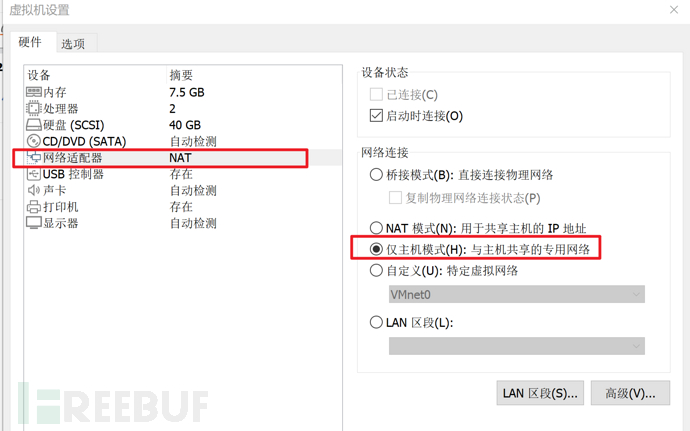

4. Network requirements: host-only or disconnected

Basic operations of the virtual machine

1. Before analyzing malicious softwareBefore analysis, analysis toolsAfter installation,Create a snapshotThe purpose is to be able to recover to the state before infection in the future; snapshot

The process of creating a snapshot is as follows:

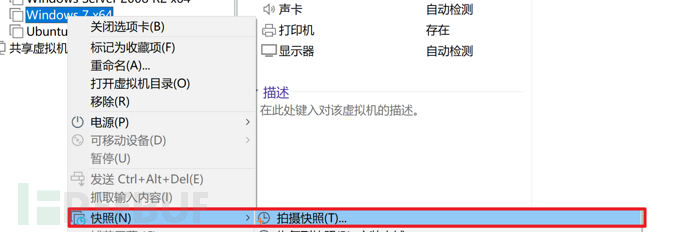

Right-click to take a snapshot:

Take a snapshot and fill in the snapshot description, as shown in the following example:

2. Each time you need to install a new tool, first restore a snapshot, then install the tool, and create a new snapshot again (PS: according to your needs, you can also remove the redundant snapshots in the middle)

3. Snapshots can be rolled back to the base snapshot and then take a snapshot, which can have branches: you can analyze another when one analysis is not finished

4. Samples can only be queried by hash value, and it is not allowed to upload samples. If you use pebear to open a virus, you can see the hash value:

Tool Installation

Virus analysis cannot do without useful tools. Here are some recommended useful analysis tools of various types.

PE-related tools

Check the PE information of the program, and have a preliminary understanding of whether the program is packed or not

ExeinfoPe

LordPE

PE-bear

pestudio

Dynamic debugging tools

When there are unclear details during virus analysis, use dynamic debugging to understand the program execution process step by step; or, viruses often encrypt data, and execute shellcode after decryption. At this time, dynamic debugging can directly obtain the decrypted shellcode.

x64dgb: A powerful tool for analyzing PE files, an open-source project with a good community environment

dnSpy: A .net language decompilation tool

WinDbg: A kernel mode and user mode debugger included in Windows debugging tools

Ollydbg: A well-known debugger for I love cracking, recently released in 64-bit

Static analysis tools

Static analysis tools are needed to decompile the source files and view the implementation of function functions and the program logic flow during virus analysis.

ida pro: A static decompilation master

Binary Ninja: As above

Jeb Decompiler: Android decompiler

jd-gui: As above

Behavior analysis tools

When a virus is executed, it has a series of operations, including registry, file creation, communication, etc. Behavior analysis tools can capture these behavior information, helping us understand the behavior of the virus.

ProcessExplorer

ProcessMonitor

FireBlade

SysTracer

Hexadecimal editor

010Editor

Network-related tools

inetsim: A tool for simulating virus communication in the Linux environment

wireshark: Capture traffic packets to obtain virus communication

Other software

CyberChef: A program for encryption, encoding, compression, and data analysis

Sublime Text 3: A text editor with virus analysis related plugins

Stripper

XVolkolak: Can decrypt most shells, and it is convenient to strip.

Note: After installing these tools, you need to take a basic snapshot.

Summary

This article mainly introduces the basic environment construction of virus analysis, among which the steps of taking snapshots and the settings are relatively important, providing readers with a way of thinking for taking snapshots.

In the subsequent articles, we will explain the practical operation of virus analysis for each tool.
